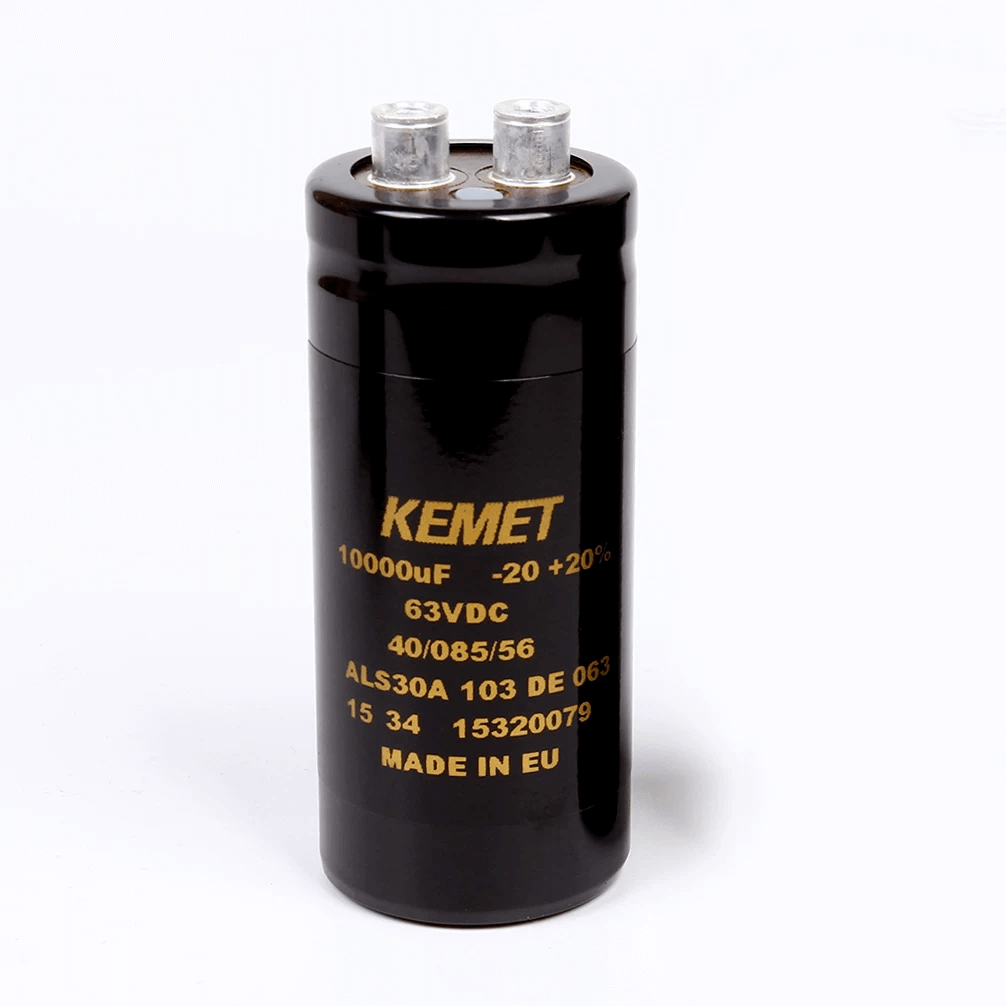

KEMET ALS30A103DE063 — ALS30 Series Screw‑Terminal Aluminum Electrolytic Capacitor, 10,000 µF ±20%, 63 VDC, 11,000 hr, Ø36×82 mm, Lead Spacing 12.8 mm, ESR 17 mΩ @100 Hz, Ripple 10.8 A — Pack of 5

The KEMET ALS30A103DE063 is a high‑capacitance screw‑terminal aluminum electrolytic capacitor from the ALS30 family, intended for DC link, bulk energy storage, smoothing and filtering in industrial power systems. This listing is for a pack of 10 units (Mouser ref. 80-ALS30A103DE063). The component combines large capacitance with low ESR and robust screw terminals for secure electrical and mechanical connections.

Key specifications

• Manufacturer / Brand: KEMET
• Manufacturer part number: ALS30A103DE063
• Distributor reference: Mouser 80-ALS30A103DE063
• Series: ALS30
• Product type: Screw‑terminal aluminum electrolytic capacitor (chassis/radial can)
• Capacitance: 10,000 µF
• Capacitance tolerance: ±20%
• Rated voltage (DC): 63 VDC
• Rated life: 11,000 hours
• Operating temperature range: −40 °C to +85 °C
• Diameter: 36 mm
• Length / Height: 82 mm
• Lead spacing (terminal pitch): 12.8 mm
• Termination style: Screw terminals
• ESR: 17 mΩ (measured @ 100 Hz)
• Ripple current: 10.8 A (test frequency 100 Hz)
• Leakage current: 3.78 mA
• Test frequency: 100 Hz
• Packaging: Pack of 10 (bulk)
• Unit weight: 115 g

Features & benefits

• Very high 10,000 µF capacitance at 63 VDC for demanding bulk energy storage and smoothing in power electronics.
• Low ESR (17 mΩ) and 10.8 A ripple rating reduce heating under ripple conditions and improve system reliability.
• Screw‑terminal construction provides secure connections for high‑current bus wiring and robust mechanical retention.
• 11,000‑hour rated life for continuous industrial applications.

Handling & installation notes

• Confirm polarity before installation.
• Tighten screw terminals to KEMET recommended torque to avoid damage to terminals or seals.
• Ensure adequate ventilation and spacing to dissipate heat generated by ripple current to achieve rated life.
• Verify mechanical clearance for Ø36×82 mm body and 12.8 mm terminal spacing; consult the datasheet/ECAD for precise mounting dimensions.

Ordering & technical resources

• Order by KEMET ALS30A103DE063 or Mouser 80-ALS30A103DE063. Refer to the official KEMET datasheet and ECAD model for full mechanical drawings, mounting torque, and additional test conditions.
