Jianghai CD136 Series 22000μF 80V Screw Terminal Aluminum Electrolytic Capacitor, 64×96mm

The Jianghai CD136 series is a high-performance, screw-terminal aluminum electrolytic capacitor engineered for demanding industrial and power supply applications. It offers a high capacitance value of 22000µF at a rated voltage of 80V, providing stable energy storage and filtering capabilities. The robust construction with screw terminals ensures excellent vibration resistance and facilitates secure, high-current connections in compact spaces.

Key Features

• Screw terminal design for high-current applications and secure mounting.
• High capacitance value of 22000µF for effective energy storage and ripple current smoothing.
• Rated voltage of 80V DC.

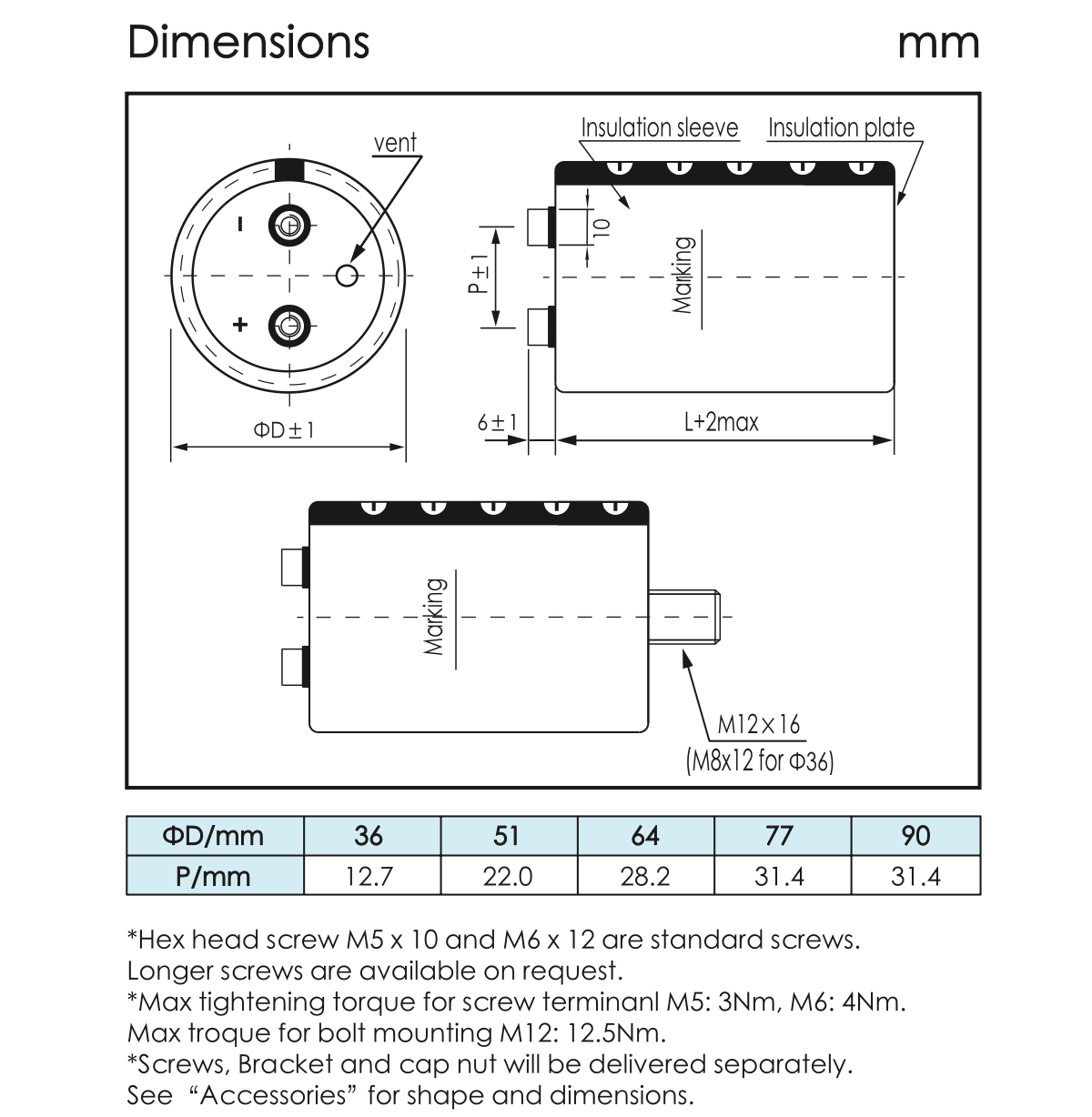

• Compact footprint with dimensions of 64mm diameter x 96mm height.
• Designed for long operational life and high reliability in industrial environments.

Specifications
