ICAR LNK-M3B1-500-130 DC Link Capacitor, 500 µF ±10%, 1300 VDC / 1250 VAC, –25 °C to +70 °C, IEC 61071 – Pack of 4

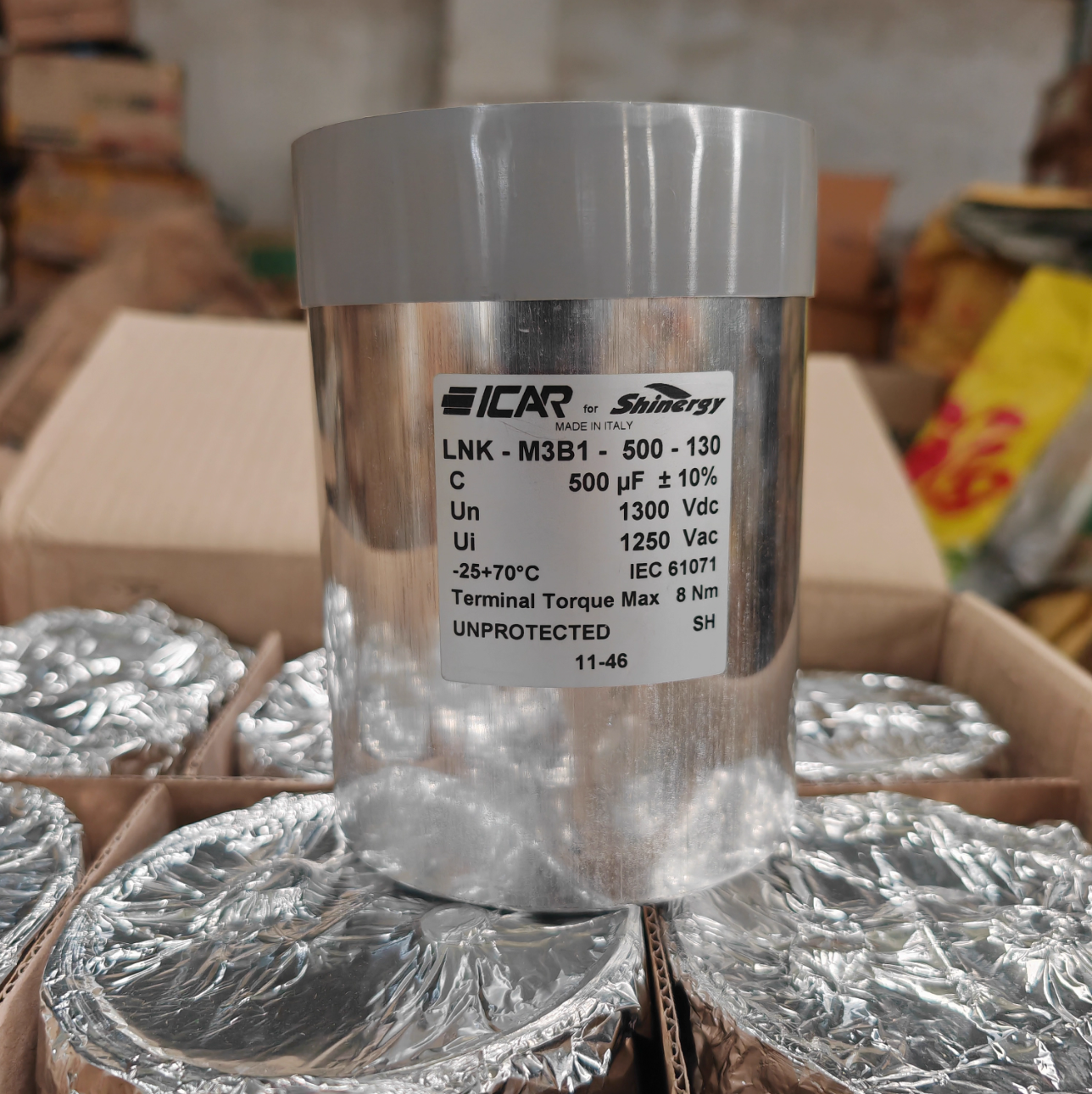

ICAR LNK-M3B1-500-130 DC Link Capacitor

The ICAR LNK-M3B1-500-130 is a high-performance DC link capacitor engineered for demanding power electronics applications. Manufactured in Italy to IEC 61071 standards, it delivers exceptional stability, high ripple current capability, and long operational life in industrial inverter, UPS, and drive systems.

Manufacturer Information:
• Manufacturer: ICAR ITALY
• Model Number: LNK-M3B1-500-130
• Capacitance: 500 µF ±10%
• Rated DC Voltage (Un): 1300 VDC
• Rated AC Voltage (Ui): 1250 VAC
• Operating Temperature: –25 °C to +70 °C
• Standard: IEC 61071
• Terminal Torque Max: 8 Nm
• Protection Type: Unprotected (SH)
• Origin: Made in Italy

Key Features:
• High ripple current handling for smooth DC bus stabilization
• Low equivalent series resistance (ESR) for reduced losses and heat
• Robust metal can construction for mechanical and thermal reliability
• Wide temperature range ensures consistent performance under varying conditions
• Ideal for inverter DC link circuits, motor drives, UPS systems, and renewable energy converters

Applications:
• Solar inverters and wind turbine converters
• Industrial motor drives and servo systems
• Uninterruptible power supplies (UPS)
• Active front-end and DC/AC converter modules
• Energy storage and smoothing circuits
