ELECTRONICON E65.R24-904M10 Power Capacitor, 900μF 420VAC, 80A Imax, Nitrogen Filled, 116x245mm, BAM Safety Device - Pack of 4

ELECTRONICON E65.R24-904M10 Power Capacitor

The ELECTRONICON E65.R24-904M10 is a high-performance power capacitor engineered for demanding applications in power electronics. This capacitor is designed to deliver reliable performance in AC systems, offering excellent stability and efficiency for critical power management functions. Its robust construction, nitrogen filling, and integrated BAM safety device ensure enhanced operational safety and extended lifespan. This specific offering includes a pack of 4 units.

Key Features:

• Part Number: E65.R24-904M10
• Capacitance: 900 μF (Microfarad)
• Nominal AC Voltage: 420 V (AC)
• RMS Voltage: 300 V (RMS)
• Maximum Current (Imax): 80 A

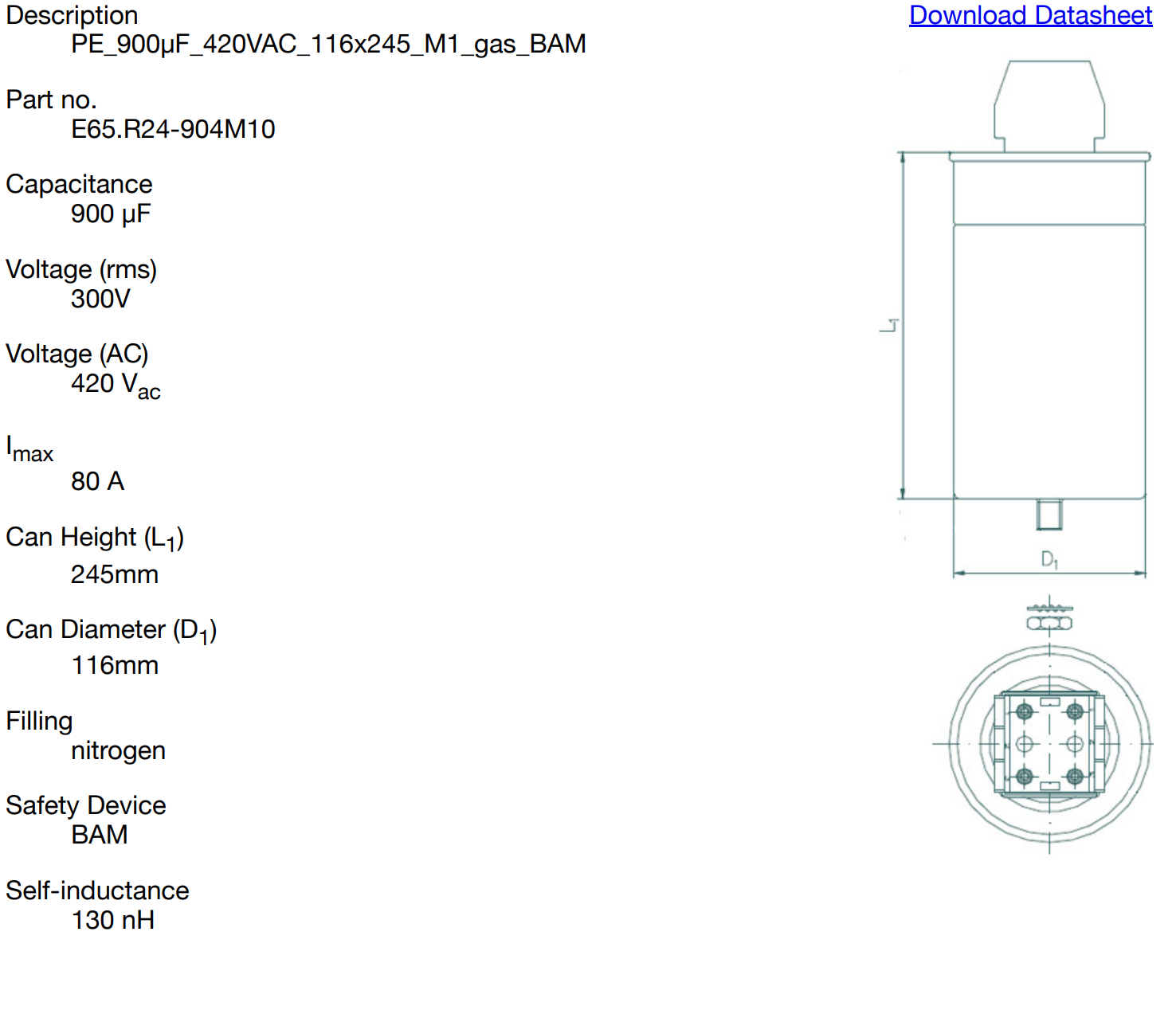

• Can Dimensions:
  • Height (L1): 245 mm
  • Diameter (D1): 116 mm
• Dielectric Filling: Nitrogen (provides improved thermal management and enhanced insulation properties)
• Safety Device: BAM (Break-Action Mechanism, an internal overpressure disconnection device for enhanced safety)
• Self-inductance: 130 nH (Nanohenry)
• Description Code: PE_900μF_420VAC_116x245_M1_gas_BAM (This code provides a comprehensive overview of the capacitor's specifications including capacitance, AC voltage, physical dimensions (diameter x height), type (M1 typically refers to terminal type/mounting style), gas filling, and safety device.)

Manufacturer Information:

ELECTRONICON Kondensatoren GmbH ELECTRONICON Kondensatoren GmbH is a renowned German manufacturer specializing in high-quality power capacitors, film capacitors, and customized solutions for power electronics. With a long-standing reputation for engineering excellence and precision, ELECTRONICON products are widely used in a variety of applications including power factor correction, railway traction, drives, renewable energy systems, and industrial power supplies. Their commitment to reliability, durability, and technological innovation makes them a trusted partner in the global market for robust capacitor solutions.
