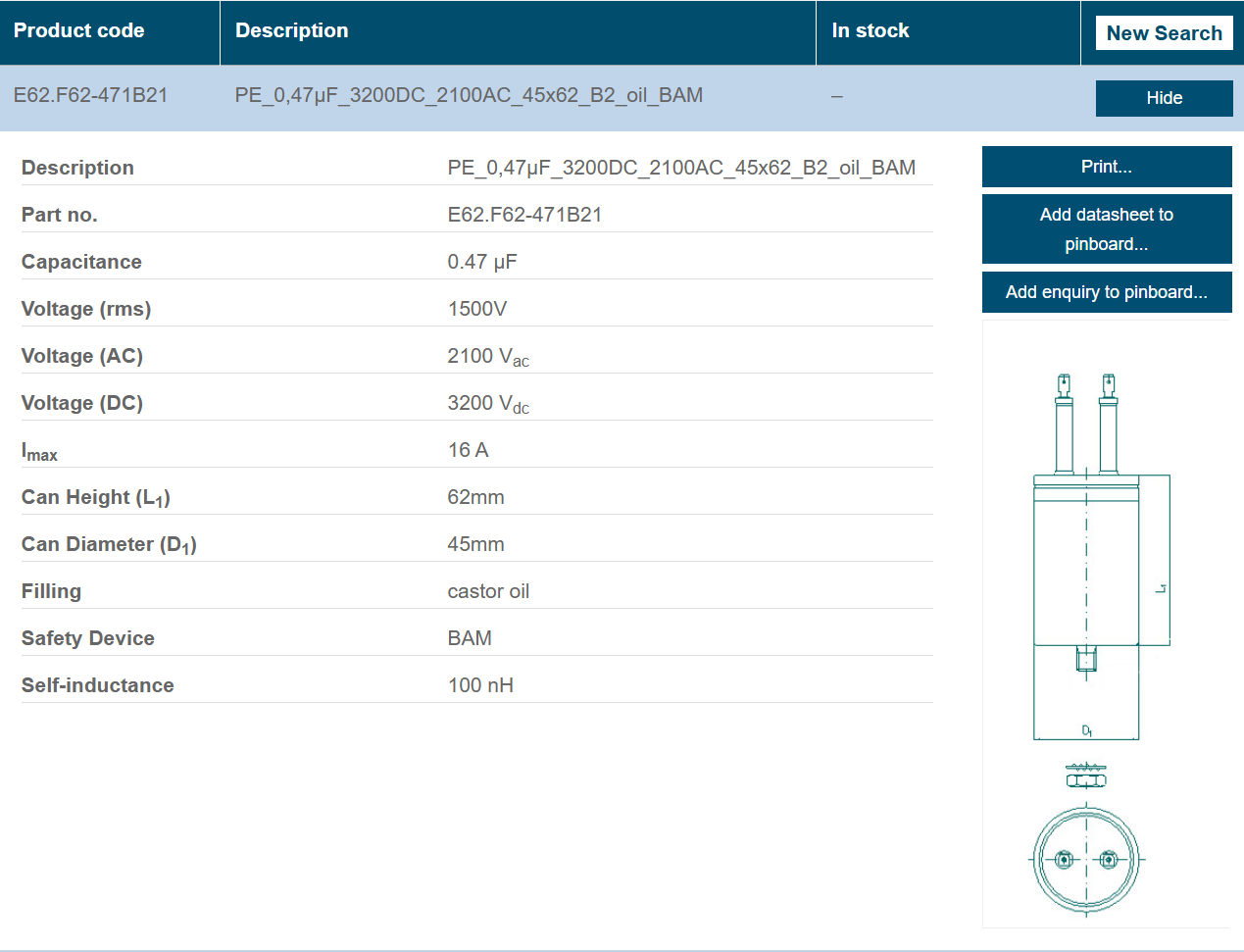

ELECTRONICON E62.F62-471B21 Power Electronic Capacitor, 0.47 µF, 3200 VDC, 2100 VAC, 16A, 45x62mm - Pack of 6

The ELECTRONICON E62.F62-471B21 is a high-performance power electronic capacitor designed for demanding industrial applications. This robust component features a capacitance of 0.47 µF and is rated for a maximum DC voltage of 3200 VDC, an AC voltage of 2100 VAC, and an RMS voltage of 1500V. With an impressive maximum current (I_max) of 16A, it is built to handle significant power loads with reliability.

The capacitor boasts a compact form factor with a can diameter of 45mm and a can height of 62mm, making it suitable for installations where space is a consideration. It utilizes castor oil as its filling, a choice known for its excellent dielectric properties and thermal stability, contributing to the capacitor's long operational life and consistent performance. Safety is paramount, and the E62.F62-471B21 is equipped with a BAM (Break-Action Mechanism) safety device, providing critical protection against overpressure in fault conditions to ensure operational integrity and user safety. Furthermore, its low self-inductance of 100 nH makes it ideal for applications requiring fast current rise times and minimal energy loss.

Manufacturer Information

• Manufacturer: ELECTRONICON
• Part No.: E62.F62-471B21
• Capacitance: 0.47 µF
• Voltage (RMS): 1500V
• Voltage (AC): 2100 VAC
• Voltage (DC): 3200 VDC
• I_max: 16 A
• Can Height (L1): 62mm
• Can Diameter (D1): 45mm
• Filling: Castor oil
• Safety Device: BAM
• Self-inductance: 100 nH
